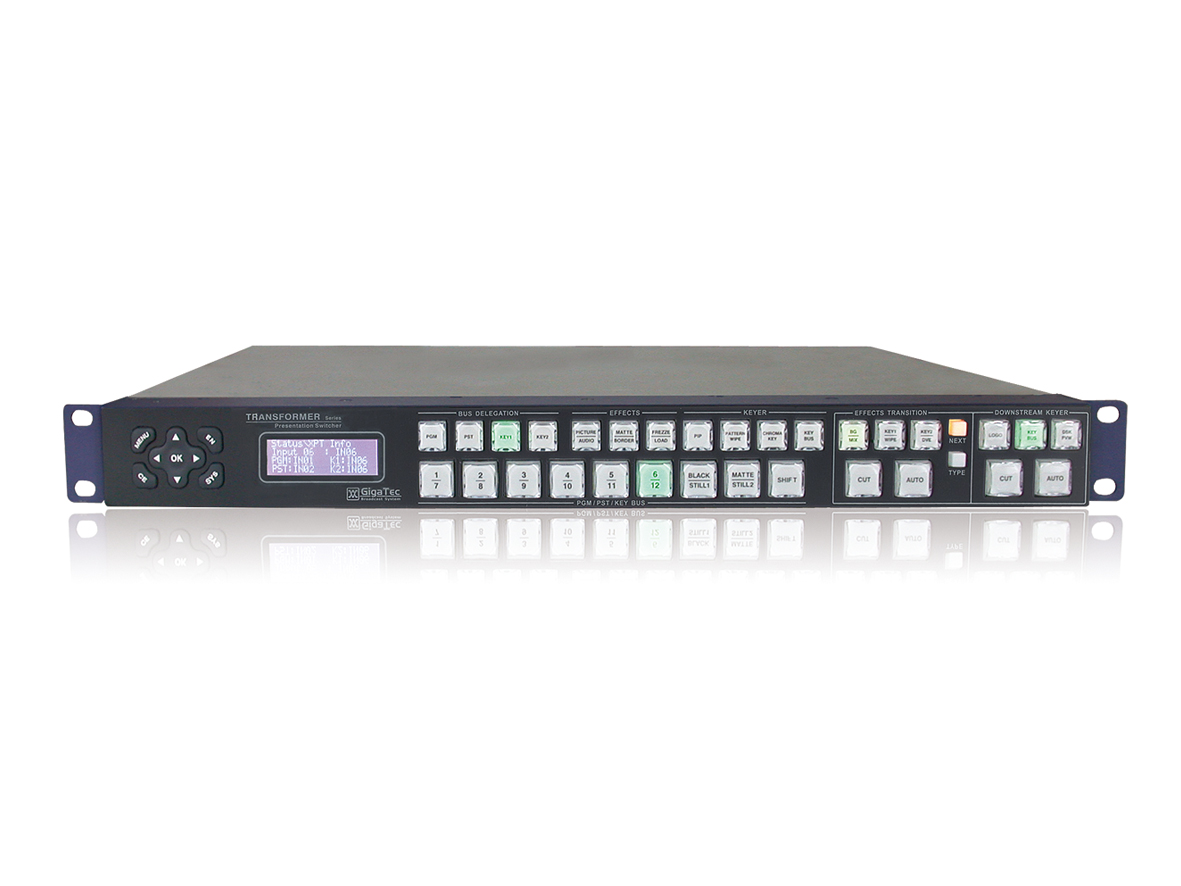

Transformer is a multi-format live switcher which faces 3G signal times. It can provide high quality, super clear picture output with power video process unit. The Transformer supports 10 channels video signal input, 2 groups video signal output. It supports all kinds of video signal input including computer video and 3G/HD/SD digital and analog video. It is equipped with independent PVW output and PGM output. The PVW output can monitor most of video output effect including PIP, wipe transitions.

The Transformer includes special transitions, keyer, PIP, key downstream, LOGO generation, audio processing, picture storage, which can be satisfied with most of live switcher demands.

The function of special transitions can support switching transition between different signal source. It supports special transitions including hybrid, wipe, hard-cutting.

PIP will be any input source video signal to adjust any size, any position to display output, which supports enter and exit effects of fade in-out, wipe, hard-cutting images.

Keyer can support foreign key, self-key and chroma key. Bright key supports key edges smooth transition process. Key supports enter and exit effects of fade in-out, wipe, hard-cutting images.

Key downstream supports to insert 1~4 dynamic or static LOGO on output video, and LOGO size, position can be set according to users’ demands. The enter and exit of LOGO supports effect of fade in-out, hard-cutting.

Logo generator can generate LOGO graphic that designed before by users under any output resolution and can also generate test image to use in debugging the system.

Video storage can be stored for any input source image. Max. storage 8 frame image, stored image can be used in PGM output.
