Routing Switcher
|
|

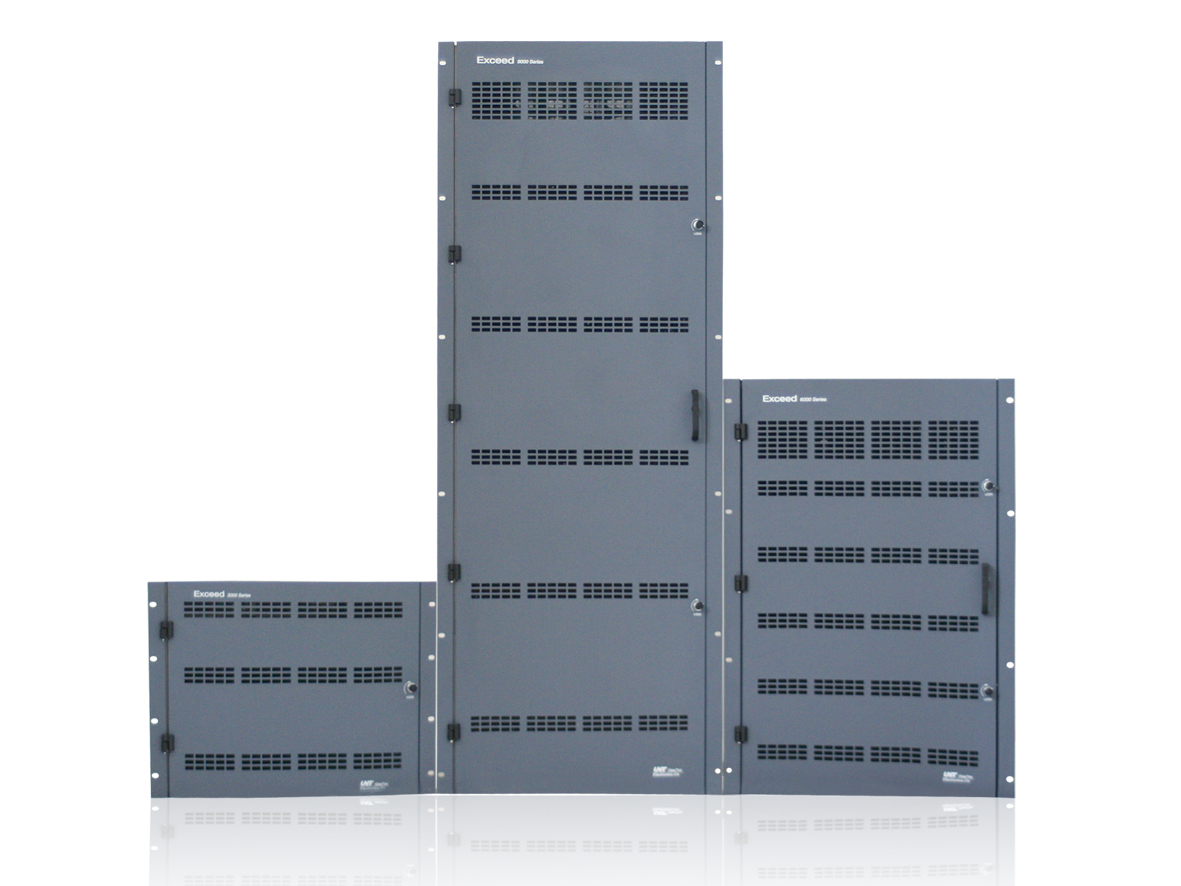

EXCEED series is a high density and large-scale VGA routing switcher. EXCEED series supports VGA signal (5BNCs R, G, B, H, V). There are three types of EXCEED series routing switcher: EXCEED 3000 (8RU), EXCEED6000 (16RU) and EXCEED9000 (29RU). The switching sizes range from 32×32, 64×64 to 128×128, respectively. EXCEED series routing switchers support various control interfaces, including RS-232/422, TCP/IP, CAN and C-BUS. EXCEED series routing switchers use modular design. All the modules are hot-swappable. The routing switcher can be upgraded and expanded “on-line” by changing the quantity of I/O modules. EXCEED series routing switcher uses redundant power supply and control modules. If the primary control module fails, the backup one can be activated automatically or manually. EXCEED series is ideal for Projector, Education, Control center and Conferencing.
|
|
|
| Features |
Specifications |
Download |
|
- Frame: EXCEED-3000 8RU (up to 32×32) - EXCEED-6000 16RU (up to 64×64) - EXCEED-9000 29RU (up to 128×128) - Signal format: VGA (5BNCs R, G, B, H, V) - Size: 32×32 ~ 128×128 - Multi-frame expansion via NODE-BUS interface - Remote control panel expansion supported - Multiple communication protocols compatibility - Control interfaces: C-BUS, CAN-BUS, RS-232/RS-422 and LAN - Redundant power supply and control modules - Built-in cooling fans
| EXCEED-3000 |
|
|
| |
|
|
| Mechanical |
|
|
| Width |
19 in. (483mm) |
| Height |
8RU (352mm) |
| Depth |
16 in. (410mm) |
|
| |
|
|
| Control Interface |
|
|
| C-BUS |
BNC (×2) |
|
| CAN |
RJ-45 (×2) |
|
| RS-232/422 |
DB-9F (×1) |
|
| LAN |
RJ-45 (×2) |
|
| |
|
|
| Electrical |
|
|
| Power Supply |
200~240VAC 50Hz |
|
| Power Consumption |
400W |
|
| |
|
|
| Environmental |
|
|
| Operating Temperature |
32°F~104°F (0°C~40°C) |
|
| Relative Humidity |
10%~90% |
|
| |
|
|
| EXCEED-6000 |
|
|
| |
|
|
| Mechanical |
|
|
| Width |
19 in. (483mm) |
|
| Height |
16RU (704mm) |
|
| Depth |
16 in. (410mm) |
|
| |
|
|
| Control Interface |
|
|
| C-BUS |
BNC (×2) |
|
| CAN |
RJ-45 (×2) |
|
| RS-232/422 |
DB-9F (×1) |
|
| LAN |
RJ-45 (×2) |
|
| |
|
|
| Electrical |
|
|
| Power Supply |
200~240VAC 50Hz |
|
| Power Consumption |
600W |
|
| |
|
|
| Environmental |
|
|
| Operating Temperature |
32°F~104°F (0°C~40°C) |
|
| Relative Humidity |
10%~90% |
|
| |
|
|
| EXCEED-9000 |
|
|
| |
|
|
| Mechanical |
|
|
| Width |
19 in. (483mm) |
|
| Height |
29RU (1276mm) |
|
| Depth |
16 in. (410mm) |
|
| |
|
|
| Control Interface |
|
|
| C-BUS |
BNC (×2) |
|
| CAN |
RJ-45 (×2) |
|
| RS-232/422 |
DB-9F (×1) |
|
| LAN |
RJ-45 (×2) |
|
| |
|
|
| Electrical |
|
|
| Power Supply |
200~240VAC 50Hz |
|
| Power Consumption |
800W |
|
| |
|
|
| Environmental |
|
|
| Operating Temperature |
32°F~104°F (0°C~40°C) |
|
| Relative Humidity |
10%~90% |
|
| |
|
|
| VGA |
|
|
| |
|
|
| Input |
|
|
| Connector |
BNC (×5) |
|
| Signal Format |
R, G, B, H, V |
|
| R, G, B Amplitude |
700mVp-p |
|
| H, V Amplitude |
TTL level |
|
| R, G, B Impedance |
75Ω |
|
| H, V Impedance |
75Ω |
|
| |
|
|
| Output |
|
|
| Connector |
BNC (×5) |
|
| Signal Format |
R, G, B, H, V |
|
| R, G, B Amplitude |
700mVp-p |
|
| H, V Amplitude |
TTL level |
|
| R, G, B Impedance |
75Ω |
|
| H, V Impedance |
75Ω |
|
| |
|
|
| Performance |
|
|
| Bandwidth |
-3dB @ 225MHz |
|
| Gain |
0dB |
|
| Differential Phase |
<0.15° @ 4.43MHz |
|
| Differential Gain |
<0.15% @ 4.43 MHz |
|
| Resolution |
Up to 1920×1440 @ 60Hz |
|
|
|
