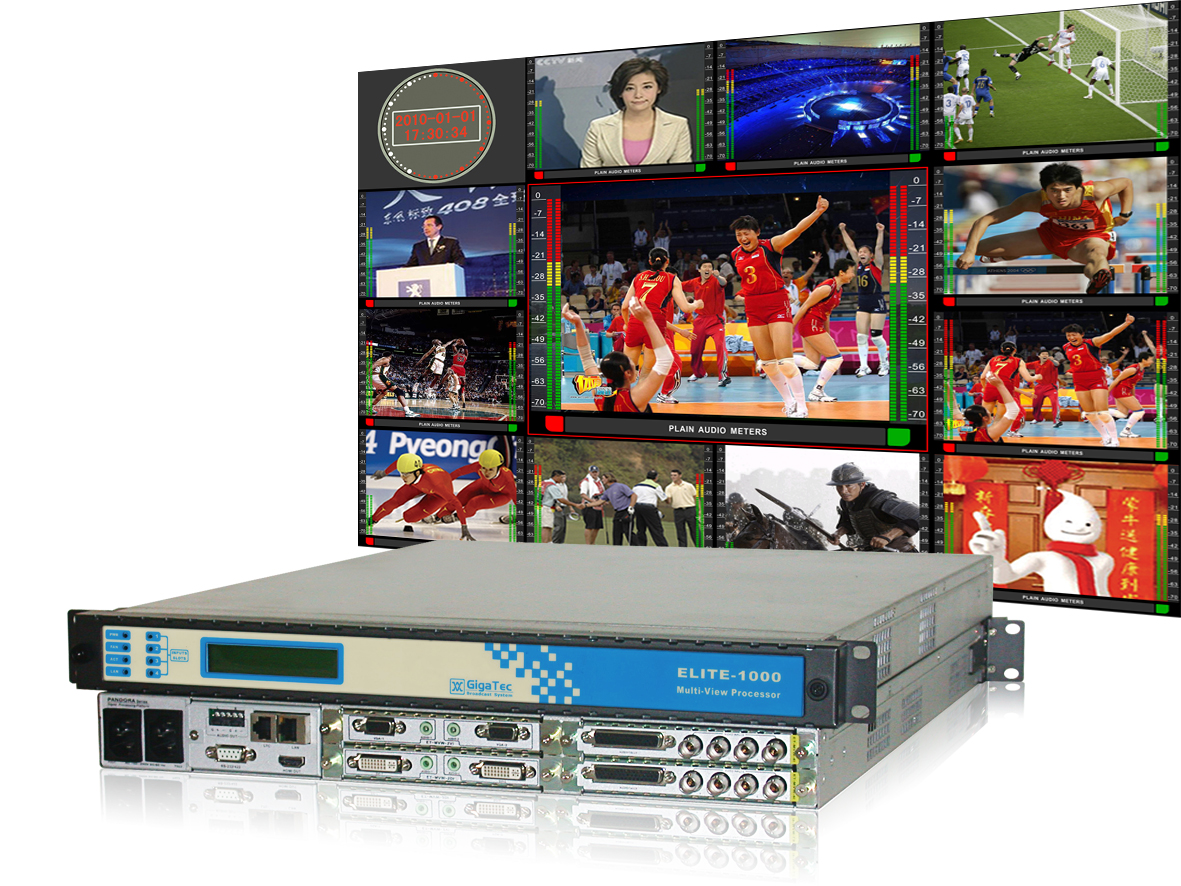

ELITE-1000 is a compact, high-resolution, modular multi-viewer built to streamline today’s complex A/V monitoring workflow. One 1RU ELITE-1000 can simultaneously display the combined graphics of up to 16 channel video signals (CVBS, HD-SDI, SD-SDI, DVI, VGA) and 16 channel audio signals (embedded audio and analog audio).

High Stability, Reliability and Security
ELITE-1000 uses a hardware design in order to avoid the instability, narrow BUS bandwidth, poor intellectual property protection and virus threat of PC-based architecture. The multi-view processor uses an industry-leading A/V processing chip for high-quality A/V output.

ELITE-1000 uses the industry standard frame for a variety of environments. The built-in cooling assembly greatly enhances the system’s reliability. Redundant power supplies ensure 24/7 continuous operation.

Along with all of the physical characteristics, ELITE-1000 uses a set of detection methods including real-time alarming capabilities for still frame and SDI with embedded audio and digital audio loss.

Flexible Modular Design
ELITE-1000 uses flexible modular design. Depending on the size of the frame, up to 4 input modules can be placed in 1RU frame. Input modules in different formats can be processed in the same frame, including auto-detecting CVBS, HD-SDI, SD-SDI, DVI and VGA. ELITE-1000 can monitor graphics from the first channel to the sixteenth channel. The output module has 1 channel HDMI output (1920×1080p) which can be displayed on an LCD/LED or PDP monitor. The output module also supports 1 channel HDMI with embedded audio outputs and analog stereo audio outputs. Each channel output audio can be from different audio input sources.

Stable Working Mode, Flexible and Versatile Display Modes
Each input module in ELITE-1000 multi-viewer uses multi-bus parallel processing mode. Each video signal is processed individually, and then the processed signals are sent in a unified format to multi-viewer module for graphics combination.

Each input module has two audio input modes: SDI with embedded audio and analog stereo audio. The audio signals are processed through the input module for unifying their signal format and calculating their VU and PPM value, and the processed audio signals are output to multi-viewer combination module.

The multi-viewer combination module synchronizes the video signals from the 4 input modules, and output audio VU meter. The combination module can store 16 standard display templates and 16 user-defined display templates. Each display template can be configured to be displayed in a sub-window. Each sub-window signal can be from different video sources.

Multi-function Integrity
ELITE-1000 supports TALLY indicator, UMD, VU/PPM meter, clock view and correction. TALLY indicator can be achieved through GPI/O. The input module provides each channel input video with TALLY signal input interface and dynamic UMD input interface. Users can choose the corresponding interface as needed. The UMD uses TSL protocol to support third-party router switch. Or UMD controller can directly drive ELITE-1000 to display the monitored signal’s name through RS-232/422.

Versatile Control Mode
The ELITE-1000 multi-viewer features a number of options for flexible operator control, including a front-panel LCD menu, RS-232/422 serial port and TCP/IP control. ELITE-1000’s window control software can work either on-line or off-line. The control software has multiple functions: display template designing, real-time control and parameter setting.

ELITE-1000 is ideal for broadcasting studios, master control rooms, OB Vehicles, and AV market.
