PD-LOGO-SD Return

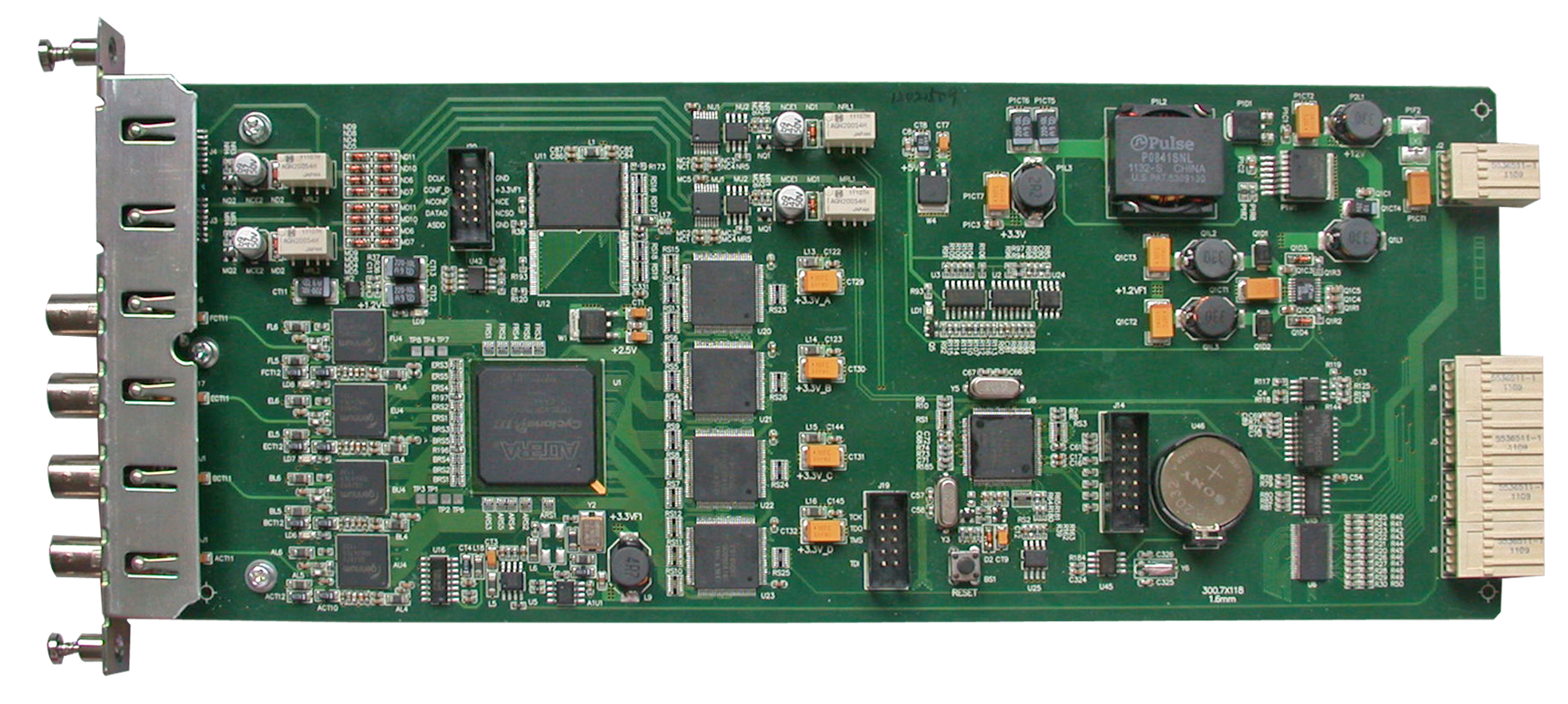

The PD-LOGO is a modular SD-SDI logo generator. It is used in 1RU or 2RU PANDORA platform. The module provides 2 SDSDI outputs, including 1 key and 1 fill. The internal storage has a capacity of 2~4 GB. Graphics in TGA format can be loaded to the storage as keying output via the platform serial port. A LTC interface is provided for time code source input/output.



The module can be controlled locally through platform front panel and remotely via PD-MASTER application.

Features Specifications Download

10-bit processing for each pixel

Internal high-precision interpolation algorithm

10-bit precision key output

Supports LTC input

Adjustable logo position by 0.3 pixel per step

Internal 2 ~ 4 GB storage

H phase adjustment

V phase adjustment

Non-volatile memory

Hot-swappable
