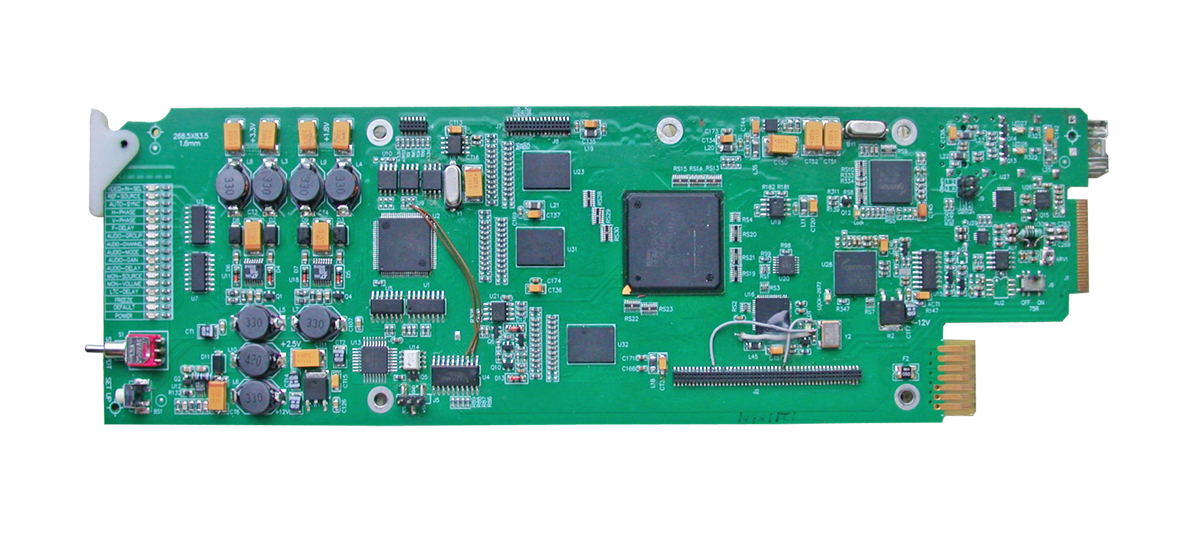

The HFM-2400 is a 3G/HD/SD-SDI digital video multiplexer with frame sync which is used in i-MOD series frames. The HFM-2400 multiplexer offers one 3G/HD/SD-SDI (2.97Gbps, 2.97/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps, 270Mbps) digital video input, 1fiber signal input, four AES-3id digital audio inputs and provides one fiber signal output and two 3G/HD/SD-SDI digital video outputs with audio embedded.

The HFM-2400 multiplexer performs 24-bit A/D conversion of four balanced analog audio inputs and then embeds them into 3G/HD/SD-SDI outputs. Embedding channels are selectable and input audio can be embedded to designated channel. Embedding modes are selectable, including L/R swap, copy and mix. Input audio gain is adjustable within ±20dB. The HD/SD-SDI input signal supports 328 ft (100 m)/656 ft (200 m)/984 ft (300 m) cable equalization compensation (Belden 1694A cable or equivalent cables).

Status presence indication and parameters manual adjustment are provided via the LED indicators, selector and paddle switches located on the module edge. 1RU and 2RU back modules are provided for HFM-2400 modules when used in 1RU and 2RU i-MOD series frames, respectively.

KEY FEATURES AND BENEFITS

- Audio embedding into an 3G/HD/SD-SDI video stream

- SMPTE 259M, SMPTE 272M, SMPTE 292M and SMPTE 424M standard

- Four AES-3id audio inputs

- H & V phase adjustment and automatic alignment

- 1 fiber input and output, selectable

- Audio gain selectable within ±20dB

- Embedding channel selectable, input audio can be embedded to designated channel

- Embedding mode selectable: L & R swap, copy and mixing

- Automatic detection of input video loss, alarm via PC software

- Automatic cable EQ for up to 328 ft (100m) (2.97Gbps)/656 ft (200 m) (1.485Gbps)/984 ft (300 m) (270Mbps)

- Stores settings in non-volatile memory

- Hot-swappable

- Computer control supported
