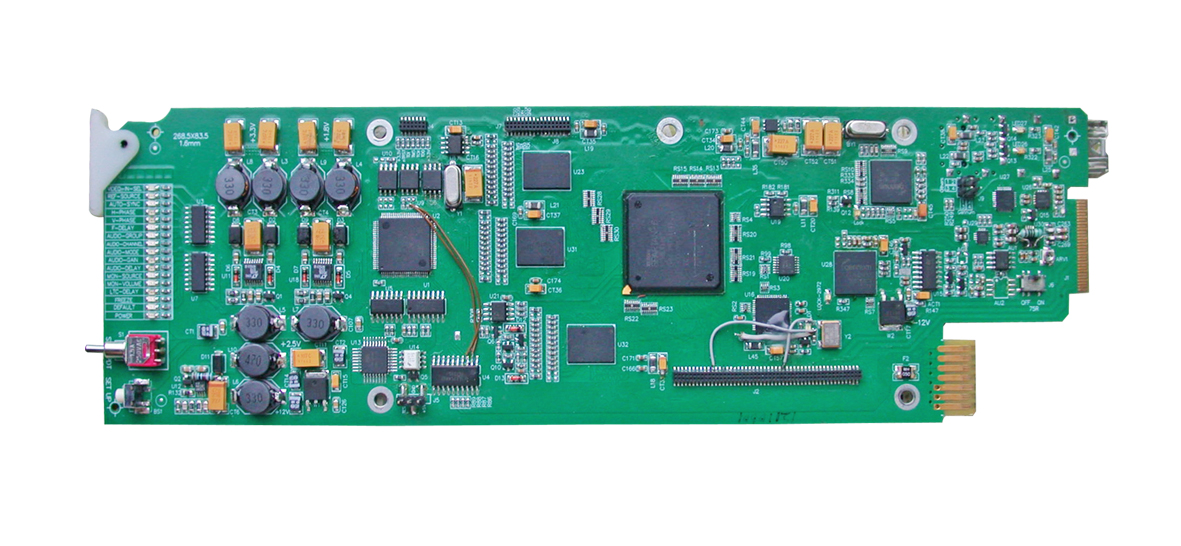

HFM-2040 is a 3G/HD/SD-SDI digital video multiplexer with frame sync which is used in i-MOD series frames. The HFM-2040 multiplexer offers one 3G/HD/SD-SDI (2.97Gbps, 2.97/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps, 270Mbps) digital video input, 1fiber signal input, four AES3 digital audio inputs and provides one fiber signal output and two 3G/HD/SD-SDI digital video outputs with audio embedded. The HFM-2040 multiplexer performs 24-bit A/D conversion of four balanced analog audio inputs and then embeds them into 3G/HD/SD-SDI outputs. Embedding channels are selectable and input audio can be embedded to designated channel. Embedding modes are selectable, including L/R swap, copy and mix. Input audio gain is adjustable within ±20dB. The HD/SD-SDI input signal supports 328 ft (100 m)/656 ft (200 m)/984 ft (300 m) cable equalization compensation (Belden 1694A cable or equivalent cables). Status presence indication and parameters manual adjustment are provided via the LED indicators, selector and paddle switches located on the module edge. 1RU and 2RU back modules are provided for HFM-2040 modules when used in 1RU and 2RU i-MOD series frames, respectively.
|
|
|
| Features |
Specifications |
Download |
|
- Audio embedding into an 3G/HD/SD-SDI video stream - SMPTE 259M, SMPTE 272M, SMPTE 292M and SMPTE 424M standard - Four AES3 audio inputs - H & V phase adjustment and automatic alignment - 1 fiber input and output, selectable - Audio gain selectable within ±20dB - Embedding channel selectable, input audio can be embedded to designated channel - Embedding mode selectable: L & R swap, copy and mixing - Automatic detection of input video loss, alarm via PC software - Automatic cable EQ for up to 328 ft (100m) (2.97Gbps)/656 ft (200 m) (1.485Gbps)/984 ft (300 m) (270Mbps) - Stores settings in non-volatile memory - Hot-swappable - Computer control supported
| DIGITAL VIDEO INPUT |
|
| Signal Format |
1080P/50,1080P/59.94,1080P/60; |
| |
1080I/50,1080I/59.94,1080I/60; |
| |
720P/23.98,720P/24,720P/25,720P/29.97,720P/30,720P/50,720P/59.94,720P/60; |
| |
1080P/25,1080P/29.97,1080P/30; |
| |
525i/59.94,625i/50 |
| Signal Standard |
SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 424M |
| Connector |
BNC (×1) |
| Impedance |
75 ohms |
| Return Loss |
SD > 18 dB @ 270 MHz, HD > 15 dB @ 1.485 GHz/2.97 GHz |
| Cable EQ |
SD<984 ft (300 m), HD<656 ft (200 m) |
| |
3Gbps<328 ft (100 m) |
| |
(Belden 1694A or equivalent cables) |
| |
|
| REF VIDEO INPUT |
|
| Signal Format |
BB/HD tri-level Sync |
| Connector |
BNC(×2),hi-z loop-thru supported |
| |
|
| DIGITAL VIDEO OUTPUT |
|
| Signal Format |
1080P/50,1080P/59.94,1080P/60; |
| |
1080I/50,1080I/59.94,1080I/60; |
| |
720P/23.98,720P/24,720P/25,720P/29.97,720P/30,720P/50,720P/59.94,720P/60; |
| |
1080P/25,1080P/29.97,1080P/30; |
| |
525i/59.94,625i/50 |
| Signal Standard |
SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 424M |
| Connector |
BNC (×2) |
| Impedance |
75 ohms |
| Return Loss |
SD > 18 dB @ 270 MHz, HD > 15 dB @ 1.485 GHz/2.97GHz |
| Amplitude |
800 mVp-p ±10% |
| Alignment Jitter |
100 kHz ~ 300 MHz, 3Gbps: < 0.3 UI, HD/SD: < 0.2 UI |
| Timing Jitter |
10 Hz 3Gbps: <2.0 UI, HD: < 1.0 UI SD: < 0.2 UI |
| Rise/Fall Time |
SD:400~1500ps; HD: <270 ps |
| |
3Gbps:<135 ps |
| Overshoot |
<10% amplitude |
| H Adjustment Precision |
±1/2H |
| V Adjustment Precision |
±1/2F |
| |
|
| DIGITAL AUDIO INPUT |
|
| Signal Format |
AES3 |
| Connector |
3Pin (×4) |
| Level |
2~7Vp-p |
| Impedance |
110Ω |
| Input Sampling Rate |
48KHz |
| |
|
| FIBER INPUT |
|
| Connector |
LC |
| Signal Format |
1080P/50,1080P/59.94,1080P/60; |
| |
1080I/50,1080I/59.94,1080I/60; |
| |
720P/23.98,720P/24,720P/25,720P/29.97,720P/30,720P/50,720P/59.94,720P/60; |
| |
1080P/25,1080P/29.97,1080P/30; |
| |
525i/59.94,625i/50 |
| Signal Standard |
SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 424M |
| |
|
| FIBER OUTPUT |
|
| Connector |
LC |
| Signal Format |
1080P/50,1080P/59.94,1080P/60; |
| |
1080I/50,1080I/59.94,1080I/60; |
| |
720P/23.98,720P/24,720P/25,720P/29.97,720P/30,720P/50,720P/59.94,720P/60; |
| |
1080P/25,1080P/29.97,1080P/30; |
| |
525i/59.94,625i/50 |
| Signal Standard |
SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 424M |
| H Adjustment Precision |
±1/2H |
| V Adjustment Precision |
±1/2F |
| |
|
| ELECTRICAL |
|
| Power |
7 W |
| |
|
| ENVIRONMENTAL |
|
| Operating Temperature |
32° ~ 104° F (0° ~ 40° C) |
| Relative Humidity |
10% ~ 90% |
|
|
