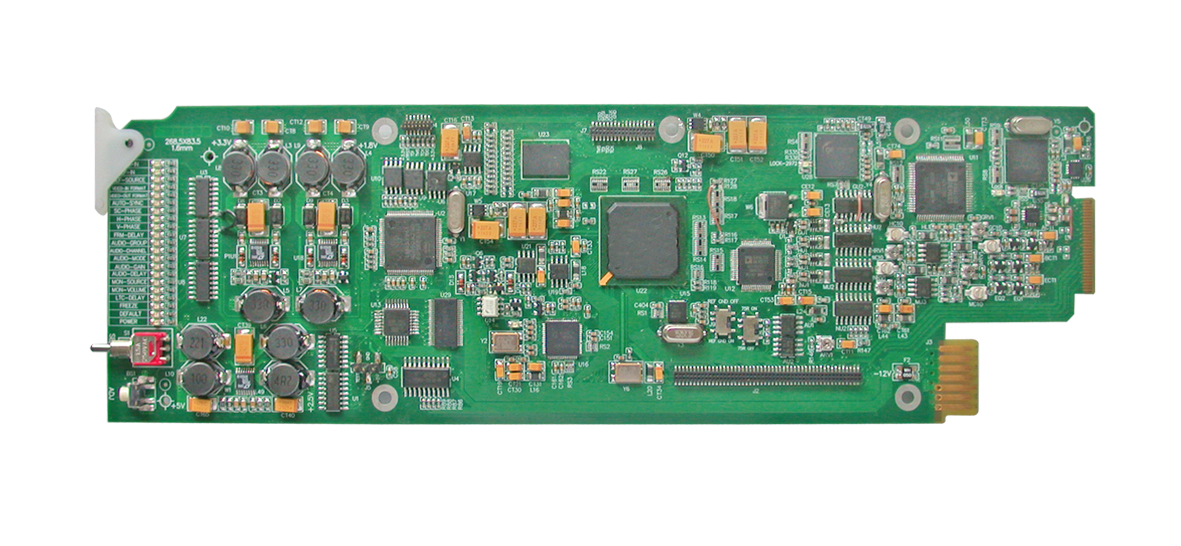

DMX-2132 is a digital video and 2 channel audio de-multiplexer with frame Sync. It is used in i-MOD platform. It provides 2 analog stereo outputs or 4 AES3 digital audio outputs, 4 AES-3id digital audio outputs. The DMX-2132 de-multiplexer extracts embedded audio from the SDI(SMPTE-259M-C, 270 Mbps, 525/59.94, 625/50 component). De-embedding channels are selectable and de-embedded audio can output to designated port. De-embedding modes are selectable, including L/R swap, copy and mix. 1 SDI outputs, SDIOUT with by-pass protection supported and 2 CVBS outputs for monitoring. Optional audio meter can be inserted on CVBS outputs. Level control is available for each audio channel. H & V phase adjustment and automatic alignment. Equalizing is up to 984 ft (300 m). (Belden 1694A cable or equivalent cables).

The DMX-2132 can be controlled locally by means of an intuitive card-edge interface or remotely using i-MOD platform control software IM-MASTER.
