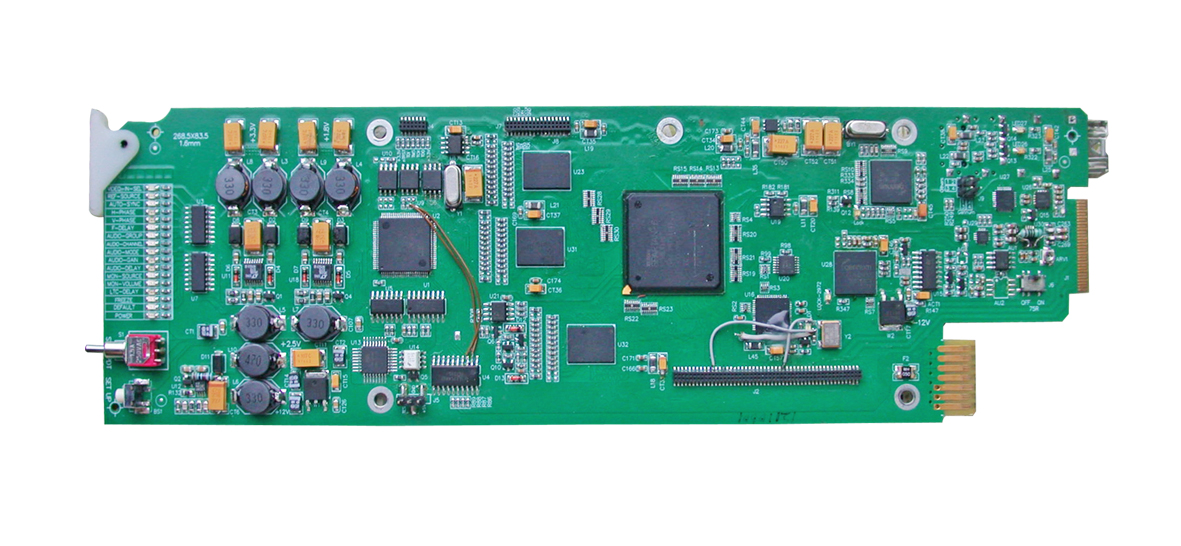

HFD-2400 is a 3G/HD/SD-SDI digital video de-multiplexer with frame sync which is used in i-MOD series frames. The HFD-2400 de-multiplexer offers one 3G/HD/SD-SDI (2.97Gbps, 2.97/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps, 270Mbps) digital video input, 1fiber signal input, four AES-3id digital audio outputs and provides one fiber signal output and two 3G/HD/ SD-SDI digital video outputs with audio embedded. H & V phase adjustment and automatic alignment. The HFD-2400 de-multiplexer extracts digital video signal from 3G/HD/SD-SDI digital video signal with embedded audio. De-embedding channels are selectable and de-embedded audio can output to designated port. De-embedding modes are selectable, including L/R swap, copy and mix. Input audio gain is adjustable within ±20dB. The 3G-SDI input signal supports 328 ft (100 m)/656 ft (200 m) /984 ft (300 m) cable equalization compensation (Belden 1694A cable or equivalent cables). Status presence indication and parameters manual adjustment are provided via the LED indicators, selector and paddle switches located on the module edge. 1RU and 2RU back modules are provided for HFD-2400 modules when used in 1RU and 2RU i-MOD series frames, respectively.
|
|
|
| Features |
Specifications |
Download |
|
- One 3G/HD/SD-SDI video input signal with embedded audio - SMPTE 259M, SMPTE 272M, SMPTE 292M and SMPTE 424M standard - 1 fiber input and output, selectable - H & V phase adjustment and automatic alignment - Four AES-3id digital audio outputs - Output audio gain selectable within ±20dB - De-embedding channel selectable; de-embedded audio can output to designated port - De-embedded mode selectable, including L & R swap, copy and mixing - Automatic detection of input video and audio loss - Cable EQ for up to 328 ft (100 m) (2.97Gbps)/656 ft (200 m) (1.485Gbps)/ 984 ft (300 m) (270Mbps) - Stores settings in non-volatile memory - Hot-swappable - Computer control supported
| DIGITAL VIDEO INPUT |
|
| Signal Format |
1080P/50,1080P/59.94,1080P/60; |
| |
1080I/50,1080I/59.94,1080I/60; |
| |
720P/23.98,720P/24,720P/25,720P/29.97,720P/30,720P/50,720P/59.94,720P/60; |
| |
1080P/25,1080P/29.97,1080P/30; |
| |
525i/59.94,625i/50 |
| Signal Standard |
SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 424M |
| Connector |
BNC (×1) |
| Impedance |
75 ohms |
| Return Loss |
SD > 18 dB @ 270 MHz, HD > 15 dB @ 1.485 GHz/2.97 GHz |
| Cable EQ |
SD<984 ft (300 m), HD<656 ft (200 m) |
| |
3Gbps<328 ft (100 m) |
| |
(Belden 1694A or equivalent cables) |
| |
|
| REF VIDEO INPUT |
|
| Signal Format |
BB/HD tri-level Sync |
| Connector |
BNC(×2),hi-z loop-thru supported |
| |
|
| DIGITAL VIDEO OUTPUT |
|
| Signal Format |
1080P/50,1080P/59.94,1080P/60; |
| |
1080I/50,1080I/59.94,1080I/60; |
| |
720P/23.98,720P/24,720P/25,720P/29.97,720P/30,720P/50,720P/59.94,720P/60; |
| |
1080P/25,1080P/29.97,1080P/30; |
| |
525i/59.94,625i/50 |
| Signal Standard |
SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 424M |
| Connector |
BNC (×2) |
| Impedance |
75 ohms |
| Return Loss |
SD > 18 dB @ 270 MHz, HD > 15 dB @ 1.485 GHz/2.97GHz |
| Amplitude |
800 mVp-p ±10% |
| Alignment Jitter |
100 kHz ~ 300 MHz |
| |
3Gbps: < 0.3 UI, HD/SD: < 0.2 UI |
| Rise/Fall Time |
SD: 400~1500 ps HD: <270 ps 3Gbps:<135 ps 3G: < 135ps |
| Overshoot |
<10% amplitude |
| H Adjustment Precision |
±1/2H |
| V Adjustment Precision |
±1/2F |
| Power |
7W |
| |
|
| DIGITAL AUDIO INPUT |
|
| Signal Format |
AES-3id |
| Connector |
BNC (×4) |
| Level |
1Vp-p±10% |
| Impedance |
>75kΩ |
| Timing Jitter |
10 Hz 3Gbps: <2.0 UI HD: < 1.0 UI SD: < 0.2 UI |
| Frequency Response |
±0.25 dB, 20 Hz ~ 20 kHz |
| |
|
| FIBER INPUT |
|
| Connector |
LC |
| Signal Format |
1080P/50,1080P/59.94,1080P/60; |
| |
1080I/50,1080I/59.94,1080I/60; |
| |
720P/23.98,720P/24,720P/25,720P/29.97,720P/30,720P/50,720P/59.94,720P/60; |
| |
1080P/25,1080P/29.97,1080P/30; |
| |
525i/59.94,625i/50 |
| Signal Standard |
SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 424M |
| |
|
| FIBER OUTPUT |
|
| Connector |
LC |
| Signal Format |
1080P/50,1080P/59.94,1080P/60; |
| |
1080I/50,1080I/59.94,1080I/60; |
| |
720P/23.98,720P/24,720P/25,720P/29.97,720P/30,720P/50,720P/59.94,720P/60; |
| |
1080P/25,1080P/29.97,1080P/30; |
| |
525i/59.94,625i/50 |
| Signal Standard |
SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 424M |
| H Adjustment Precision |
±1/2H |
| V Adjustment Precision |
±1/2F |
| |
|
| ENVIRONMENTAL |
|
| Operating Temperature |
32°F~104°F (0°C~40°C) |
| Relative Humidity |
10%~90% |
|
|
