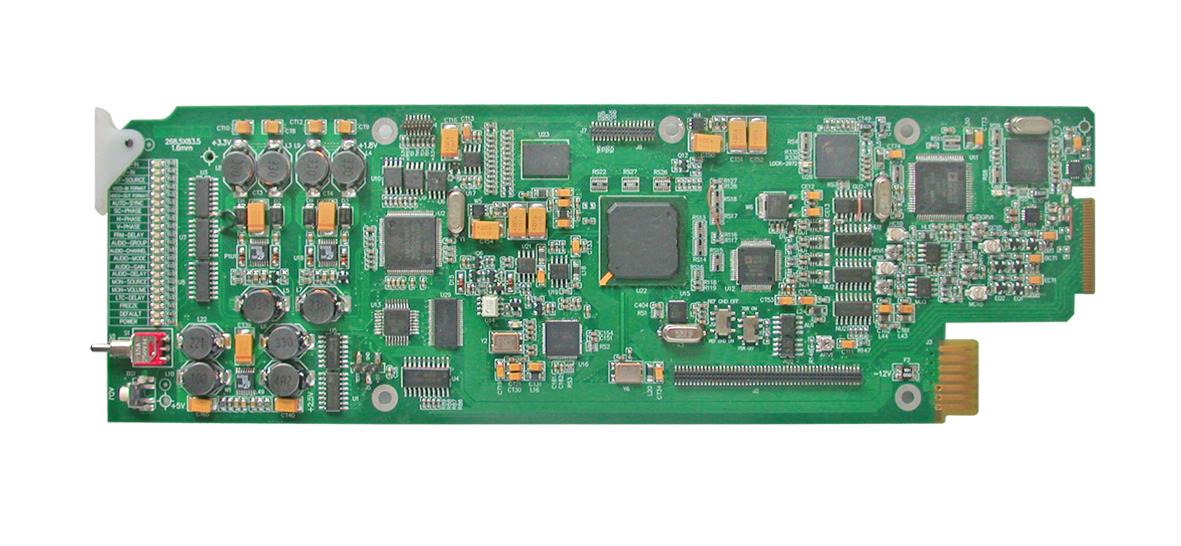

DEC-2101 is an analog-to-digital video converter. It is used in i-MOD platform. The module converts CVBS, Y/C, YUV to SDI video signals. 12-bit processing and 4-time oversampling are used. It provides 4 SDI outputs and 1 CVBS output for monitoring. The DEC-2101 can be controlled locally by means of an intuitive card-edge interface or remotely using i-MOD platform control software IM-MASTER.
|
|
|
| Features |
Specifications |
Download |
|
- NTSC/PAL compliant - 12-bit processing - 4-time oversampling - Accommodates CVBS, Y/C, Y/U/V inputs - 4 SDI outputs - 1 CVBS output for monitoring - Non-volatile memory - Hot-swappable - IM-MASTER control supported
| ANALOG VIDEO INPUT |
|
| Signal Format |
CVBS, Y/C, YUV |
| Standards |
NTSC, PAL |
| Quantization |
12 bits |
| Connector |
BNC (×3) |
| Impedance |
75 Ω |
| S/N Ratio |
>40 dB @ 5.5 MHz |
| |
|
| ANALOG VIDEO OUTPUT |
|
| Signal Format |
CVBS |
| Standards |
NTSC, PAL |
| Quantization |
8 bits |
| Connector |
BNC (×1) |
| Impedance |
75 Ω |
| Amplitude |
1.0 Vp-p ±3% |
| Chr/Lum Delay Diff |
<5 ns |
| S/N Ratio |
>70 dB @ 6 MHz |
| |
|
| DIGITAL VIDEO OUTPUT |
|
| Signal Format |
SMPTE 259M-C,270Mbps, 4:2:2,10bits |
| Connector |
BNC (×4) |
| Impedance |
75 Ω |
| Return Loss |
>15 dB @ 270 MHz |
| Amplitude |
800 mVp-p ±10% |
| Jitter |
<0.2 UI |
| Rise/Fall Time |
400 ~ 1500 ps, 20% ~ 80% of amplitude |
| Overshoot |
<10% of amplitude |
| |
|
| ELECTRICAL |
|
| Power |
5 W |
| |
|
| ENVIRONMENTAL |
|
| Operating Temperature |
32° ~ 104° F (0° ~ 40° C) |
| Relative Humidity |
10% ~ 90% |
|
|
