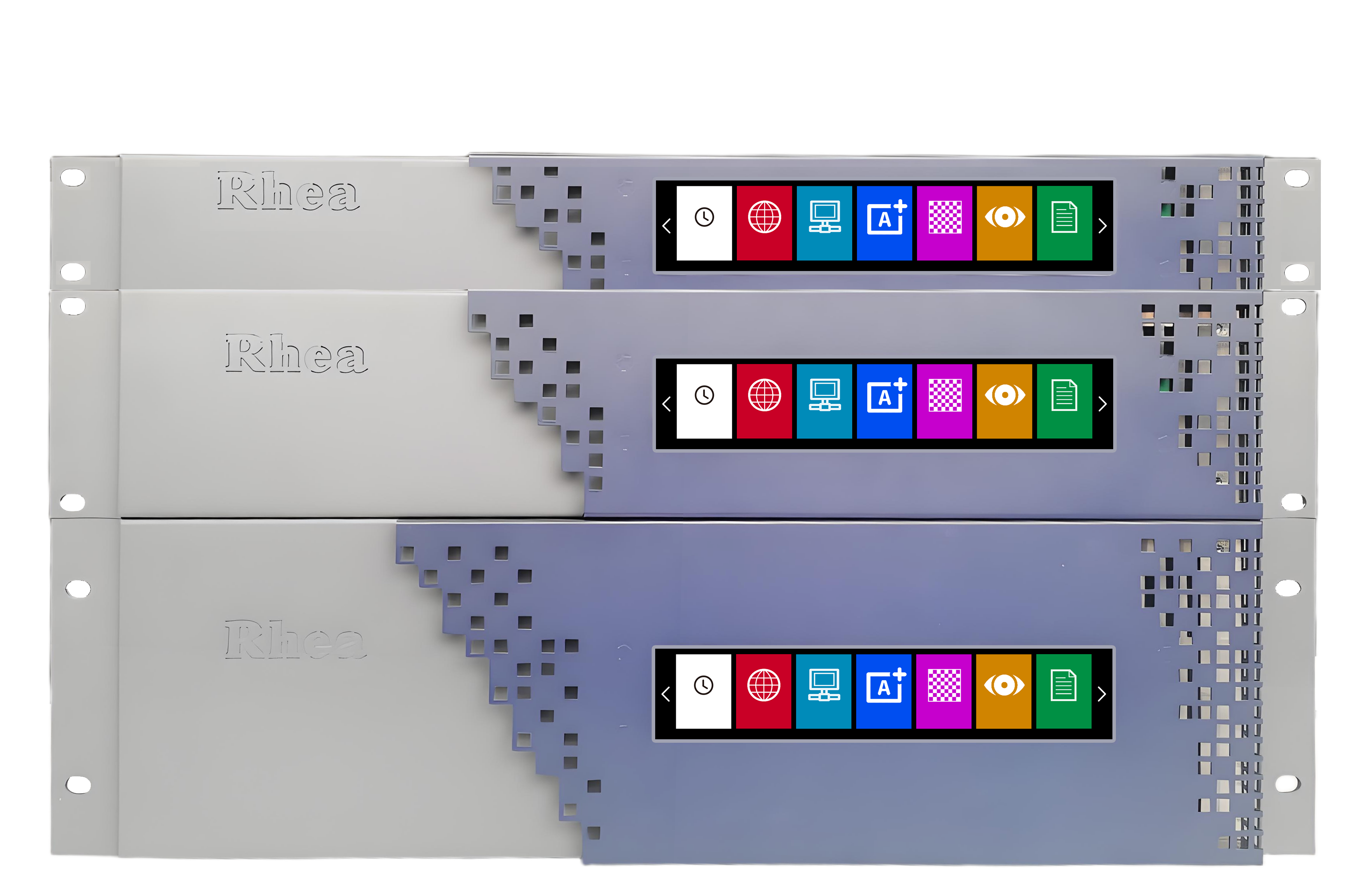

机箱尺寸

1RU机箱：483mm（宽）×80mm（深）×44mm（高）

2RU机箱：483mm（宽）×80mm（深）×88mm（高）

3RU机箱：483mm（宽）×80mm（深）×132mm（高）

电源范围

100~240VAC 50/60Hz

反射损耗

>15dB to 1.485Gbps

>10dB to 2.97Gbps

>7dB to 5.94Gbps

>4dB to 11.88Gbps

上升/下降时间

270Mbps: 0.4-1.5nS, <0.5nS difference

1.485Gbps: <270ps, <100ps difference

2.97Gbps: <135ps, <50ps difference

5.94Gbps: <80ps, <30ps difference

11.88Gbps: <45ps, <18ps difference

抖晃

270Mbps: <0.2UI, jitter measured 10Hz-1kHz

1.485Gbps: <1.0UI jitter measured 10Hz-100kHz,

<0.2UI above 100kHz

2.97Gbps: <1.0UI jitter measured 10Hz-100kHz,

<0.3UI above 100kHz

5.94Gbps: <2.0UI jitter measured 10Hz-100kHz,

<0.3UI above 100kHz, band limit @594MHz

11.88Gbps: <2.0UI jitter measured 10Hz-100kHz,

<0.3UI above 100kHz, band limit @1188MHz

信号幅度

800mV ±10%

过冲

<10%
